Product Features and Applications

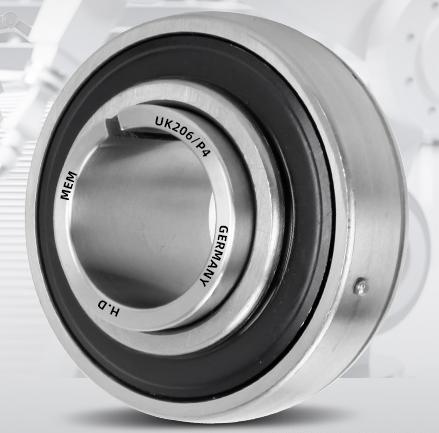

Tapered Bore and Adapter Sleeve Mounting: The UK206 bearing is a type of outer spherical ball bearing with a tapered bore. It is designed to be used with an adapter sleeve for mounting onto a smooth (unstepped) shaft
.Self-Aligning Capability: Its core design feature is the spherical outer surface of the outer ring. This allows it to articulate within the corresponding spherical inner surface of a bearing housing, providing an automatic self-aligning effect. This design effectively compensates for misalignment caused by installation inaccuracies or shaft deflection, thereby enhancing system reliability
."Maintenance-Free" Sealing and Lubrication: This type of bearing is typically pre-lubricated and equipped with seals from the factory, offering effective protection against dust and contaminants. This design is essentially "maintenance-free," as it generally requires no cleaning or additional lubrication before installation
.Primary Application Fields: Thanks to its self-aligning capability and ease of installation and maintenance, the UK206 bearing is well-suited for relatively harsh working environments where alignment requirements are not critical. It is commonly used in applications such as agricultural machinery, conveying systems, mining equipment, and engineering machinery
.
