Product Features

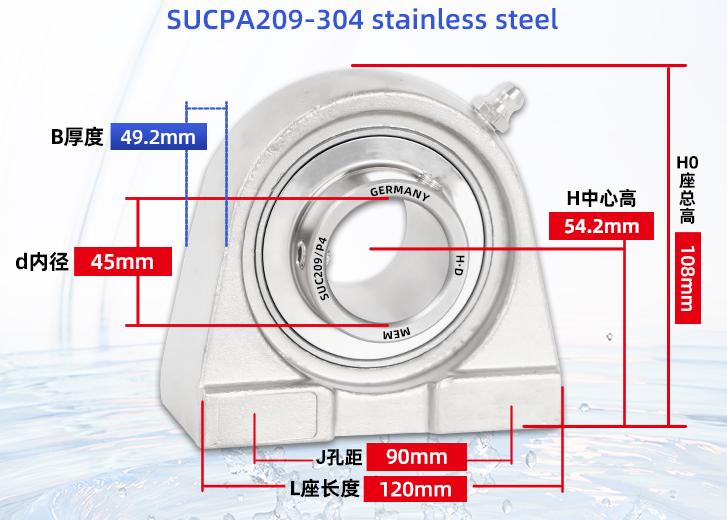

The SUCPA209 bearing unit is widely used due to several outstanding advantages in its design:
Ready-to-Install and Easy Mounting: The bearing is pre-assembled in the housing and lubricated at the factory. You only need to fix it to the equipment using bolts through the mounting holes in the base of the housing, eliminating complex alignment steps and greatly simplifying the assembly process
.Self-Aligning Capability: The outer ring of the outer spherical bearing features a spherical design, which can cooperate with the spherical inner hole of the bearing seat to automatically adjust the center position. This effectively compensates for misalignment caused by installation errors or slight shaft deflection, preventing the bearing from承受ing additional stress
.Good Sealing Performance: This bearing is usually equipped with double-sided contact seals (such as rubber seals), which effectively prevent the internal lubricant from leaking and block the ingress of external contaminants like dust and moisture, thereby extending its service life in harsh operating conditions
.High Interchangeability: The bearing insert (the outer spherical bearing part) and the bearing housing have strong interchangeability. Inserts of the same specification can be installed on different types of bearing housings (such as plummer blocks, square flange blocks, diamond blocks, etc.), providing design flexibility
.Thanks to the above features, the SUCPA209 bearing unit is commonly applied in the following fields:
Conveying and Transportation Equipment: Such as belt conveyors, roller lines, etc.
.Agricultural Machinery:
.Industrial Fans, Papermaking Machinery, Rolling Mills:
.
