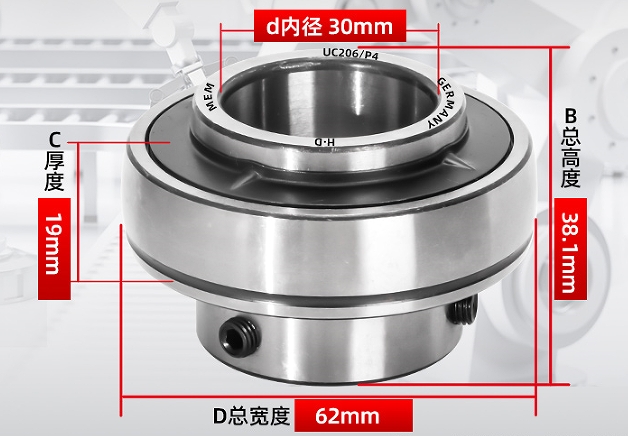

The UC206 bearing is a variant of deep groove ball bearings. Its most distinctive characteristic is that the outer diameter surface of its outer ring is spherical
. This design allows it to mate with the concave spherical inner bore of the bearing housing, thereby providing a self-aligning capability that compensates for misalignment caused by installation errors or shaft deflection.
This type of bearing is an integrated unit that combines a rolling bearing and a housing into a compact assembly
. It is typically supplied pre-lubricicated and equipped with seals (often a double-sided sealing structure), which effectively prevent the ingress of contaminants and facilitate maintenance-free or low-maintenance operation . It is primarily designed to withstand combined radial and axial loads, with the radial load being the dominant component .
