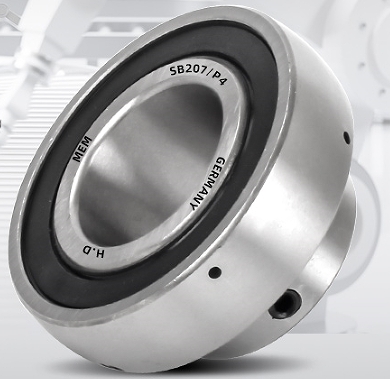

The SB207 bearing is a variant of deep groove ball bearings. Its most distinctive feature is that the outer diameter surface of its outer ring is spherical
. This design allows the bearing to be matched with the corresponding concave spherical surface of the bearing housing, thereby providing a self-aligning capability that can compensate for misalignment caused by installation errors or shaft deflection .
These bearings are typically pre-filled with lubricant and equipped with seals upon leaving the factory, which effectively prevents the ingress of contaminants and contributes to maintenance-free or low-maintenance operation
. They are primarily designed to withstand combined radial and axial loads, where the radial load is predominant, and are generally not suitable for carrying axial loads alone .
