Design Features and Advantages

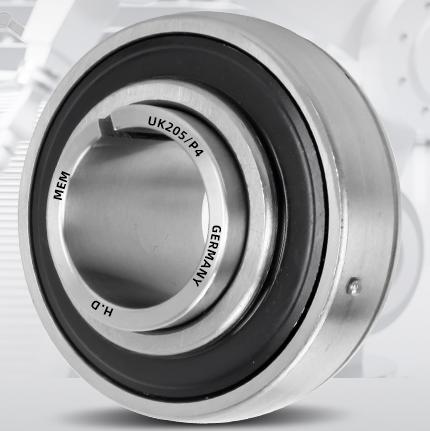

As a member of the outer spherical ball bearing family, the UK205 bearing combines practicality and durability with the following key advantages:
Self-Aligning Capability: The spherical outer diameter surface of the bearing allows it to align automatically with the concave spherical surface of the housing. This enables the bearing to compensate for misalignment caused by installation errors, shaft deflection, or poor alignment, ensuring stable operation under challenging conditions
.Ease of Installation and Maintenance: The UK205 model typically uses an adapter sleeve locking mechanism (UK+H type) or a setscrew design, allowing direct fixation to the shaft for straightforward installation
. The bearing is sealed on both sides to prevent contamination and is pre-lubricated at the factory, generally eliminating the need for cleaning or relubrication before installation, which simplifies the process.Robustness and Suitability: Its sturdy construction and sealed design provide excellent protection, making it well-suited for relatively harsh environments with vibrations and impacts
.
