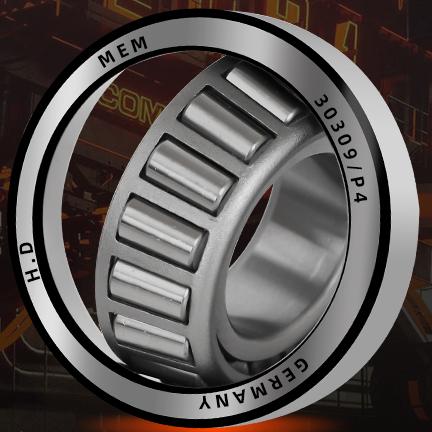

Structural Design: The 30309 bearing features conical raceways on both the inner and outer rings, as well as tapered rollers. The apexes of all these conical surfaces converge at a common point on the bearing axis. This design enables the bearing to withstand combined loads, specifically significant radial loads and unidirectional axial loads
. The bearing typically employs a separable design, meaning the inner ring assembly (comprising the inner ring, the tapered rollers, and the cage) can be mounted separately from the outer ring (cup). This facilitates installation, disassembly, and maintenance .
Performance Characteristics: This type of bearing offers high load-carrying capacity, high rigidity, and a long service life
. The clearance or preload can be adjusted during installation to meet the specific stiffness and rotational accuracy requirements of different application scenarios .
