Performance Characteristics

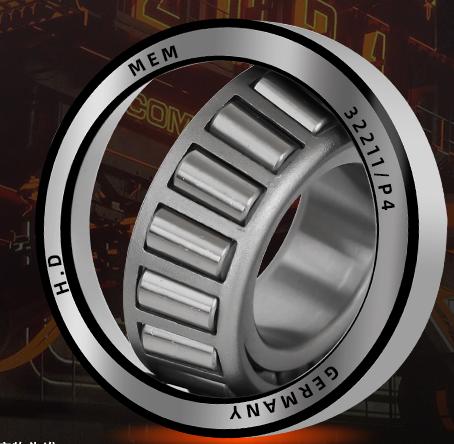

The performance characteristics of the 32211 bearing primarily stem from its tapered roller bearing design
.
Combined Load Capacity:Thanks to its tapered roller design, the bearing can simultaneously withstand combined radial and axial loads, with a strong capacity for handling such combined loads. The design ensures that the apexes of the conical surfaces of the raceways and the rollers converge at a common point on the bearing axis, which promotes uniform load distribution
.Separable Design:The bearing's inner ring (including the rollers and cage) and outer ring can be separated. This feature simplifies the installation and disassembly processes. Furthermore, it allows for the adjustment of the bearing's internal clearance after installation, which is crucial for optimizing system rigidity and controlling running accuracy
.Process and Material:The raceway surfaces are typically treated with carbonitriding to enhance wear resistance. The cage is generally made from SPCC cold-rolled steel plate through stamping, and the bearing material is high-carbon chromium bearing steel (GCr15)
.
