Profile of SUCPA206
SUCPA206 is a stainless steel mounted outer spherical bearing known for its corrosion resistance and ease of installation. Below is a summary of its key information:
Feature Category | Specific Information |
|---|---|
Basic Model Designation | S: Stainless steel material; UCPA: With立式圆形座 (vertical pillow block housing); 206: Bore diameter of 30 mm (calculated as 06×5=30mm) . |

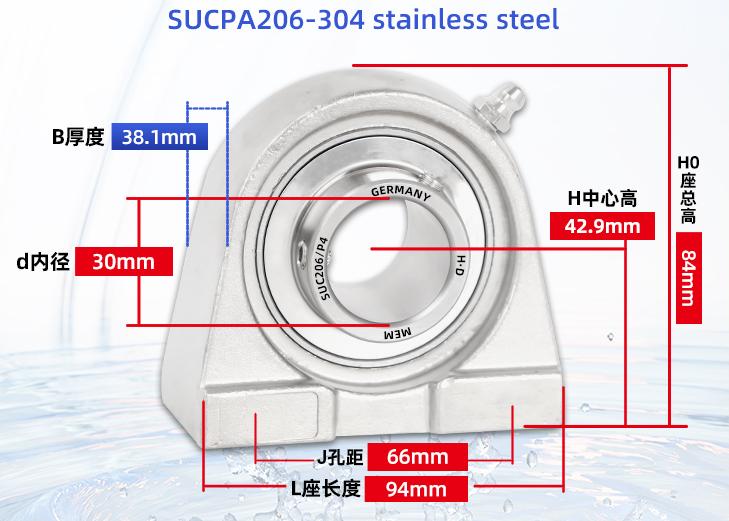

Main Dimensions | Shaft Diameter (Bore): 30 mm |
Main Characteristics | Strong Corrosion Resistance: The bearing and housing ring are typically made of 304 or 316 stainless steel, suitable for damp and chemically corrosive environments (e.g., food, chemical industries) .Self-Aligning Capability: The spherical outer ring design automatically compensates for minor misalignments caused by installation or shaft deflection, reducing additional wear . Effective Sealing: Usually equipped with double-sided silicone rubber seals and mirror-finished stainless steel dust covers, effectively preventing contaminant entry and retaining grease . Easy Installation: Integral housing structure allows direct installation onto equipment surfaces via bolts. The bearing inner ring is typically fixed to the shaft via set screws . |
Typical Application Scenarios | Suitable for environments requiring corrosion resistance or high cleanliness, such as food processing machinery, conveying equipment, chemical machinery, pharmaceutical machinery, and water treatment equipment . |
Selection Considerations | Confirm the shaft diameter is 30mm; select the appropriate stainless steel grade (e.g., 304 or 316) based on actual load, speed, and environmental corrosivity; ensure the housing mounting surface is flat and securely fixed during installation . |
This translation is based on the Chinese profile you provided and relevant information from the search results
.
